LMB Linear guide

Standard LMB Type

Product Overview

The raceways of TSK standard LMB linear guides are precisely processed into circular arch with two rows each side. It is designed for receiving load from four dimensions equally, and steel balls installed into a bearing block along with end cap and ball retainer provide smooth and unlimited linear motion.

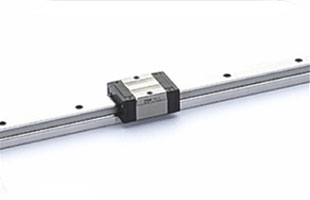

  • Compact Type・HC series

    Short Slide Block type(HC)
    PDF
    Normal Slide Block Type(HC-L)
    PDF
    CAD

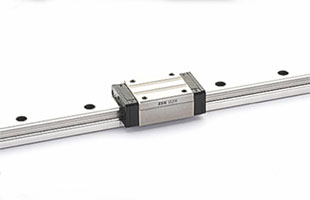

  • Standard Type・HS-R series

    Normal Slide Block type(HS-R)
    PDF
    Long Slide Block Type(HS-LR)
    PDF
    CAD
  • Standard Wide Block Type・HS-A series

    Normal Slide Block Type(HS-A)
    PDF
    Long Slide Block Type(HS-LA)
    PDF
    CAD
  • Standard Wide Block Type・HS-T series

    Normal Slide Block Type(HS-T)
    PDF
    Long Slide Block Type(HS-LT)
    PDF
    CAD
